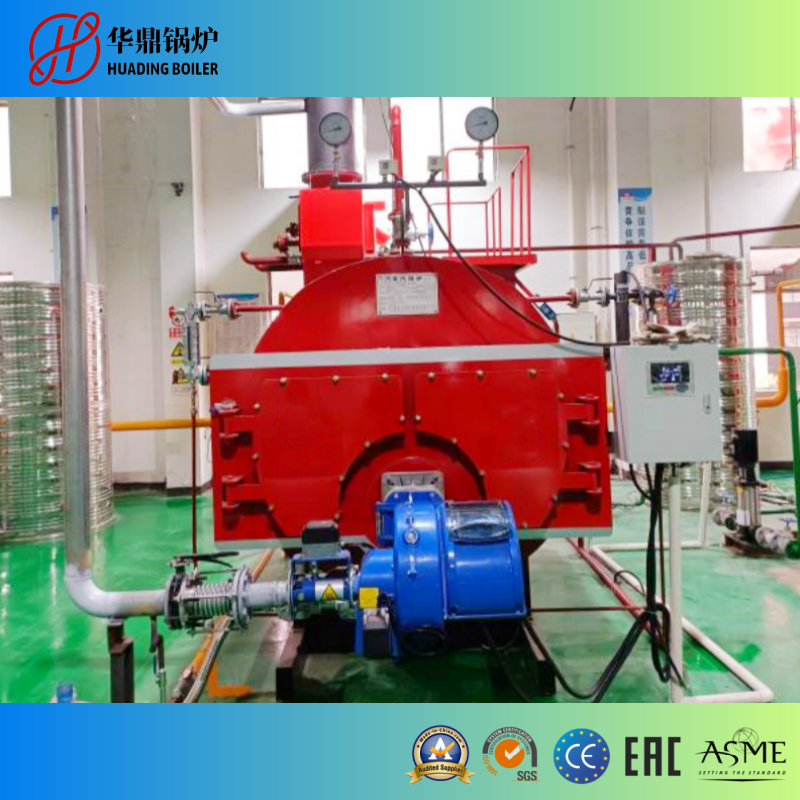

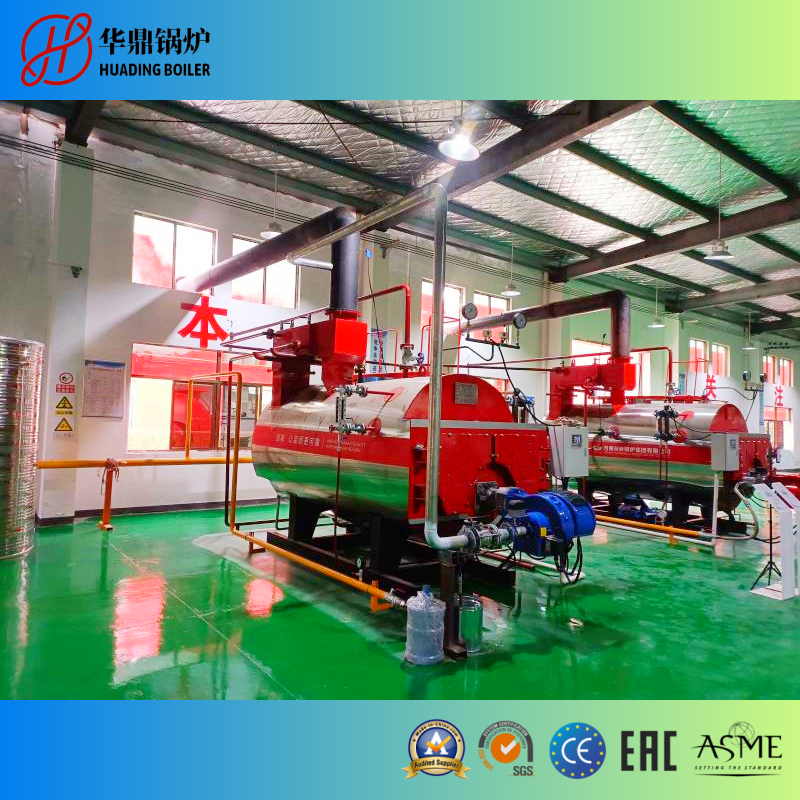

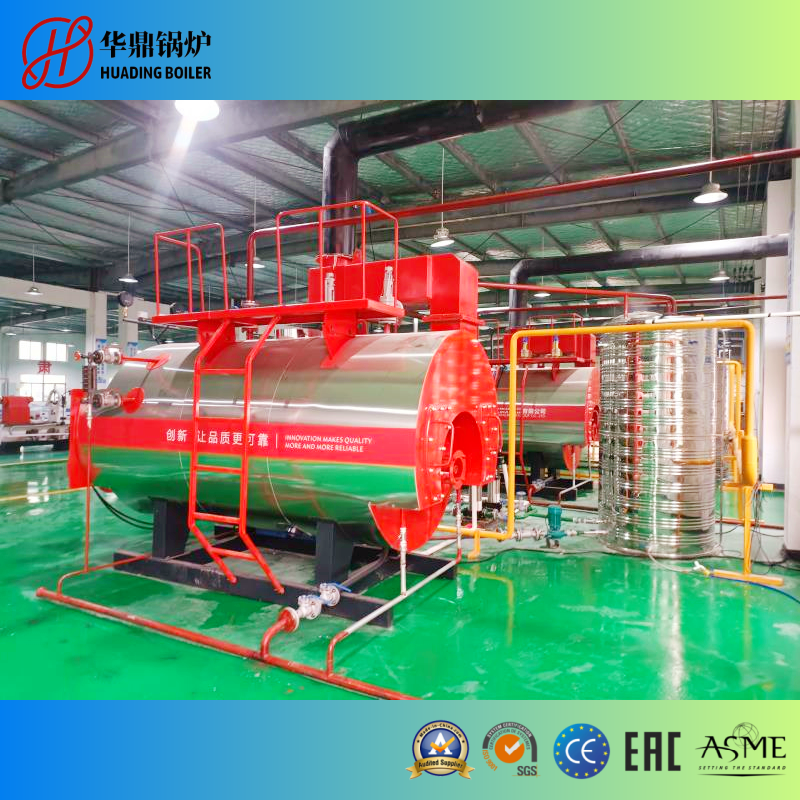

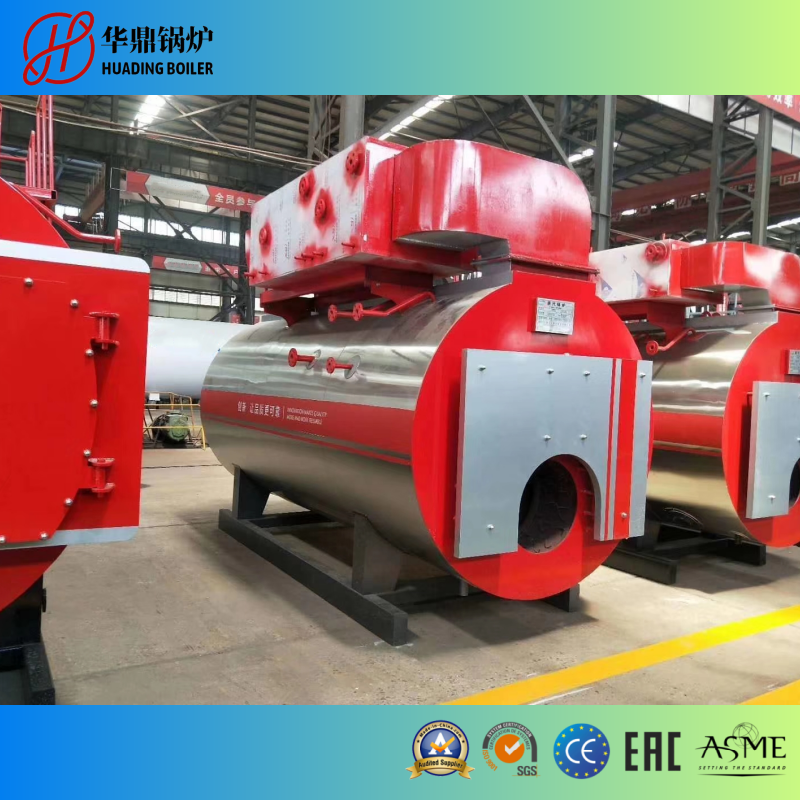

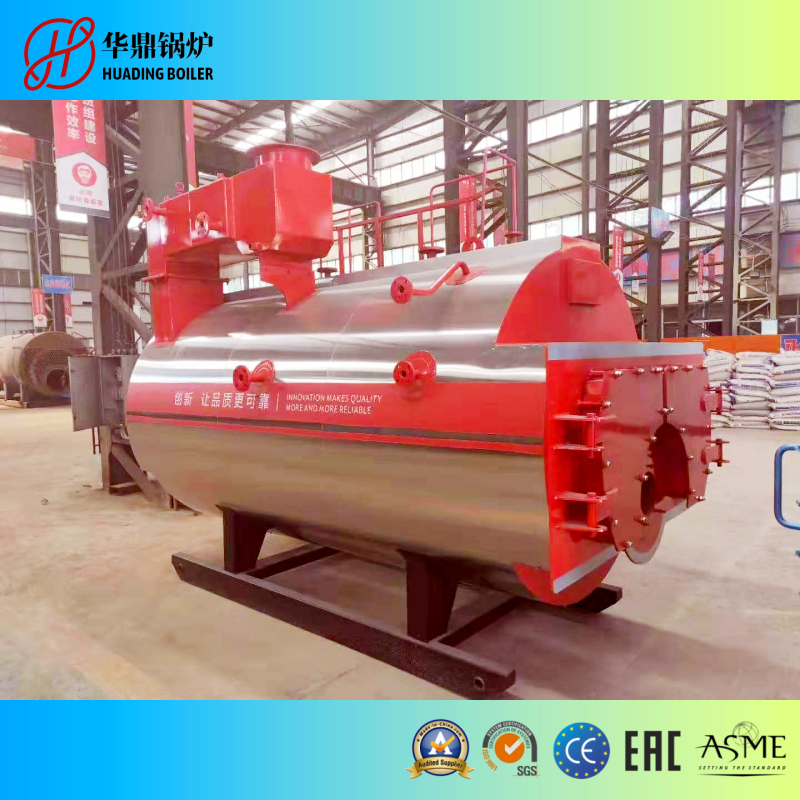

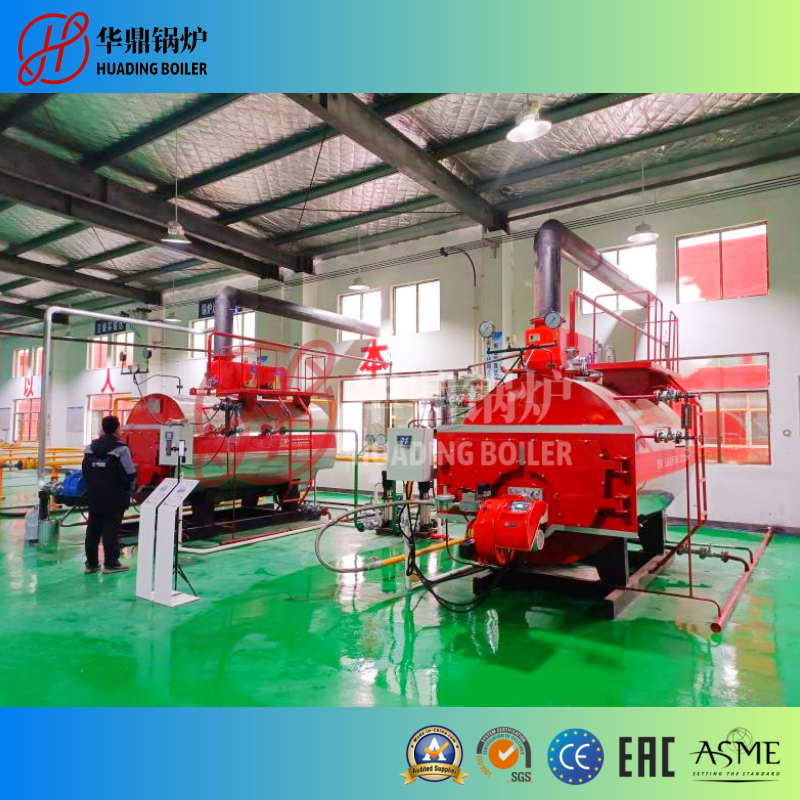

WNS oil/gas steam boiler

   Product introduction

WNS oil/gas steam boiler is a horizontal fast-loading internal combustion three-way fire-tube boiler, which is a series of mature products of Hana boiler, with optimized configuration and advanced technical indicators. The WNS oil/gas steam boiler is equipped with an industrial burner with good technical performance; The front and rear smoke box covers are used to make the boiler easy to overhaul.

Rated evaporation：0.5-20t/h

thermal efficiency：:≥95%

Scope of application：Chemical, plastic, rubber, construction, forestry, concrete steaming, plate processing, pharmaceutical industry distillation, etc

Applicable fuels：Natural gas, LNG, LPG, heavy oil, methanol, biogas, light diesel

   Technical Parameter

Note:

1. The fuel consumption in the table is calculated based on the low calorific value of light oil at 42700 kJ/kg (10253 kcal/kg) and the low calorific value of natural gas at 35588 kJ/Nm3 (8500 kcal/Nm3).

2. Heavy oil, liquefied petroleum gas, and city gas are also suitable for this furnace type.

• The WNS type fuel/gas steam boiler is a horizontal fast loading internal combustion three return fire tube boiler. Adopting a biased furnace bladder wet back structure, high-temperature flue gas sequentially flushes the second and third return flue pipes, and then is discharged into the atmosphere through the chimney from the rear flue chamber. The boiler has sufficient heat supply: the heating surface of the boiler is designed and configured according to high standards, fully absorbing effective heat, with low exhaust gas temperature and small heat loss, ensuring sufficient output and high efficiency. The boiler is equipped with movable front and rear smoke box covers, making boiler maintenance convenient.

• The WNS type fuel/gas steam boiler is equipped with industrial burners with excellent technical performance. It adopts advanced technologies such as automatic proportional adjustment of combustion, automatic adjustment of feedwater, program start stop, and fully automatic operation. It also has high and low water level alarms and automatic protection functions such as low water level, ultra-high steam pressure, and shutdown. This type of boiler has the characteristics of compact structure, safety and reliability, easy operation, rapid installation, low pollution, low noise, and high efficiency.

• WNS fuel/gas steam boiler is suitable for chemical industry: fertilizer factory, oil refinery, beverage factory, painting factory, plastic factory, glass factory, sulfuric acid factory, etc.; manufacturing industry: paper mill, textile factory, dairy factory, winery, food factory, food bacteria factory, shoe factory, ceramics factory, furniture factory, tire factory, mat factory, cigarette factory, chopsticks factory, printing factory, tape factory, foam factory, hardware factory, floor factory, cabinet factory, wood door factory, battery factory, salt factory, tea factory, instrument factory, etc.; construction industry: road and bridge maintenance, concrete steaming, aerated brick steaming, etc.; and agricultural product processing, pharmaceutical production, Fireproof materials can be used in industries such as production.

.
