Product introduction

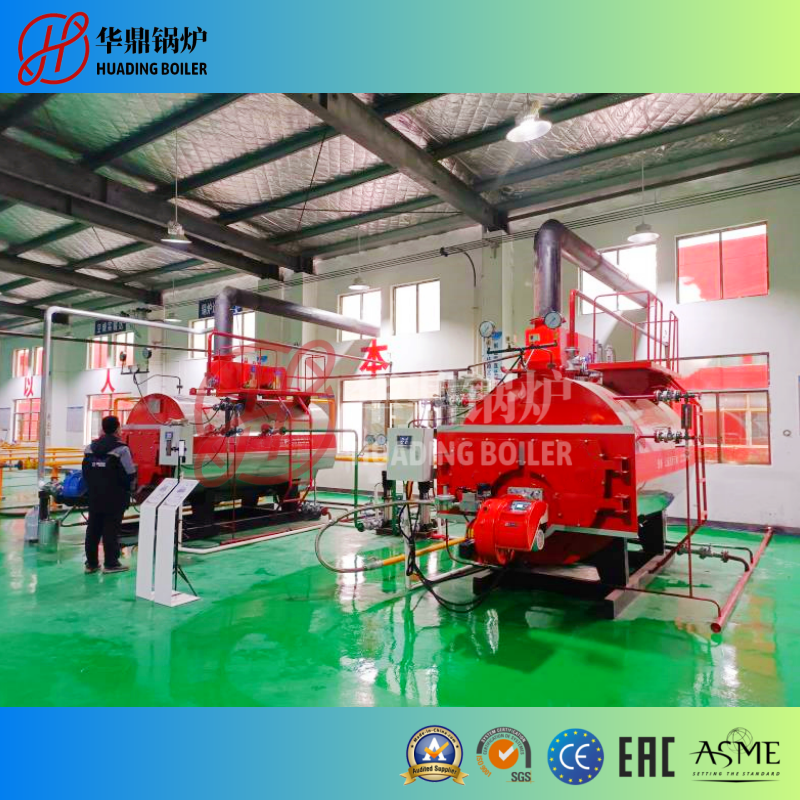

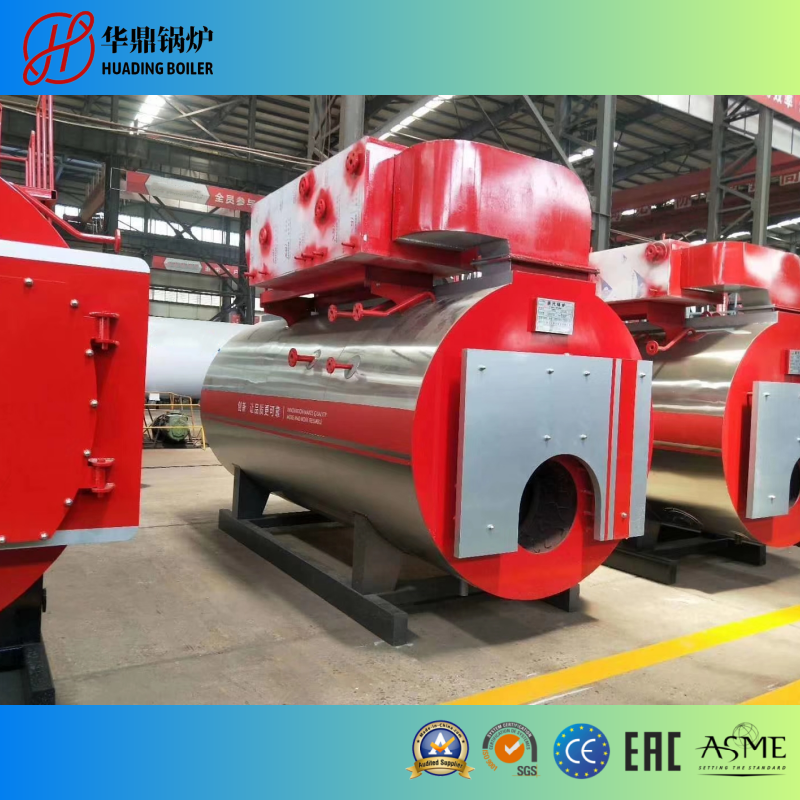

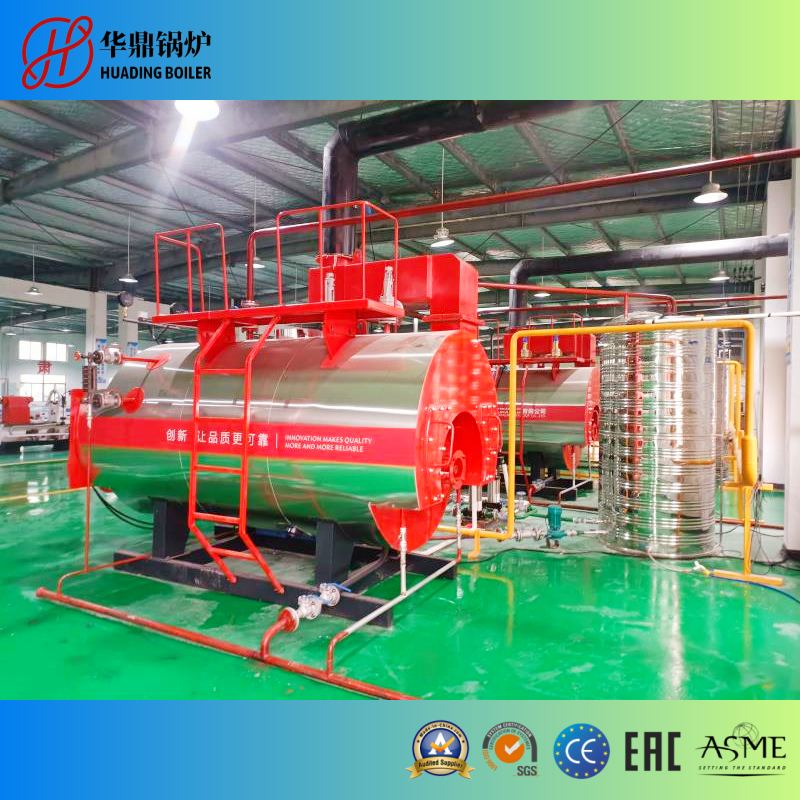

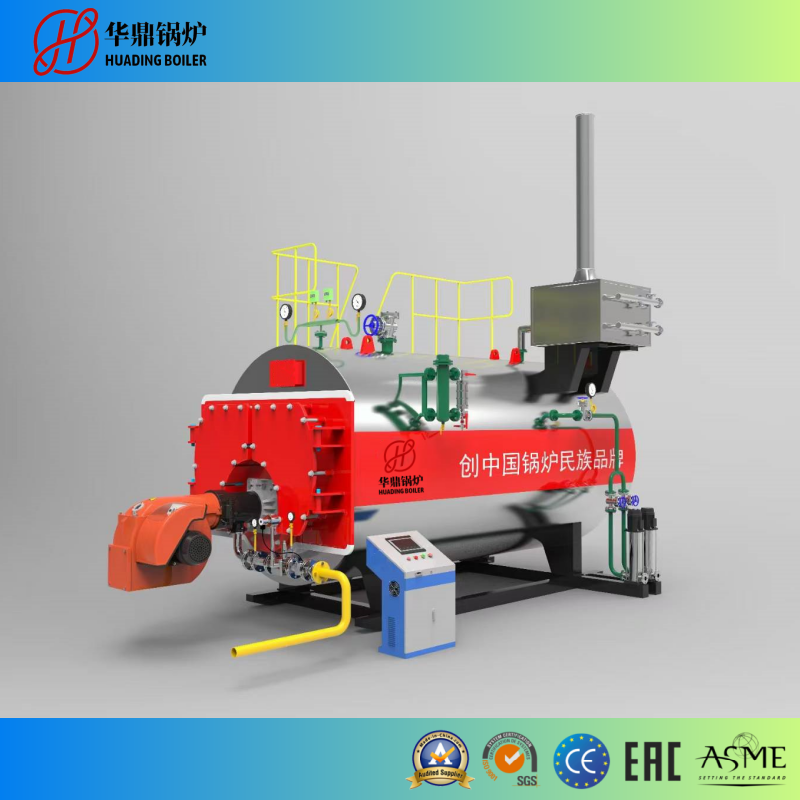

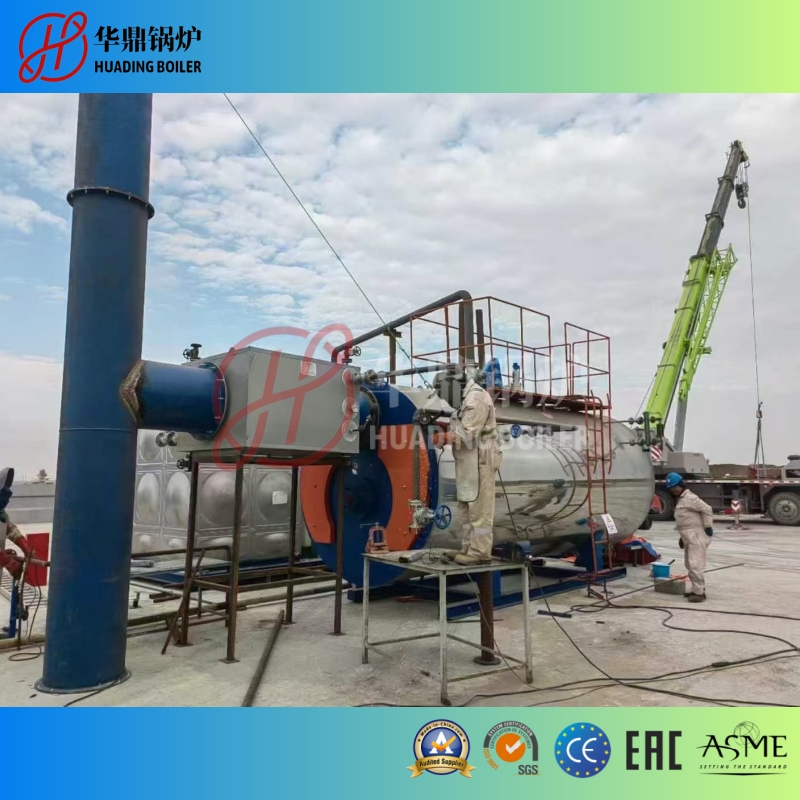

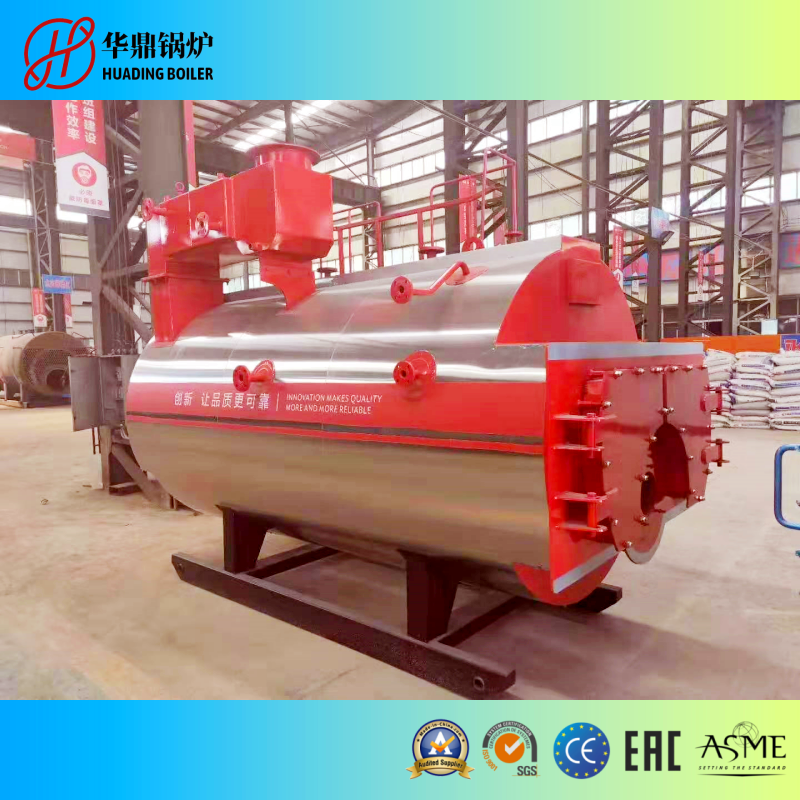

WNS oil/gas steam boiler is a horizontal fast-loading internal combustion three-way fire-tube boiler, which is a series of mature products of Hana boiler, with optimized configuration and advanced technical indicators. The WNS oil/gas steam boiler is equipped with an industrial burner with good technical performance; The front and rear smoke box covers are used to make the boiler easy to overhaul.
Rated evaporation：0.5-20t/h
thermal efficiency：:≥95%
Scope of application：Chemical, plastic, rubber, construction, forestry, concrete steaming, plate processing, pharmaceutical industry distillation, etc
Applicable fuels：Natural gas, LNG, LPG, heavy oil, methanol, biogas, light diesel
Technical Parameter
The WNS type fuel/gas steam boiler is a horizontal fast loading internal combustion three return fire tube boiler. Adopting a biased furnace bladder wet back structure, high-temperature flue gas sequentially flushes the second and third return flue pipes, and then is discharged into the atmosphere through the chimney from the rear flue chamber. The boiler has sufficient heat supply: the heating surface of the boiler is designed and configured according to high standards, fully absorbing effective heat, with low exhaust gas temperature and small heat loss, ensuring sufficient output and high efficiency. The boiler is equipped with movable front and rear smoke box covers, making boiler maintenance convenient.
The WNS type fuel/gas steam boiler is equipped with industrial burners with excellent technical performance. It adopts advanced technologies such as automatic proportional adjustment of combustion, automatic adjustment of feedwater, program start stop, and fully automatic operation. It also has high and low water level alarms and automatic protection functions such as low water level, ultra-high steam pressure, and shutdown. This type of boiler has the characteristics of compact structure, safety and reliability, easy operation, rapid installation, low pollution, low noise, and high efficiency.
WNS fuel/gas steam boiler is suitable for chemical industry: fertilizer factory, oil refinery, beverage factory, painting factory, plastic factory, glass factory, sulfuric acid factory, etc.; manufacturing industry: paper mill, textile factory, dairy factory, winery, food factory, food bacteria factory, shoe factory, ceramics factory, furniture factory, tire factory, mat factory, cigarette factory, chopsticks factory, printing factory, tape factory, foam factory, hardware factory, floor factory, cabinet factory, wood door factory, battery factory, salt factory, tea factory, instrument factory, etc.; construction industry: road and bridge maintenance, concrete steaming, aerated brick steaming, etc.; and agricultural product processing, pharmaceutical production, Fireproof materials can be used in industries such as production.
Technical Parameters
Note: 1. The fuel consumption in the table is calculated based on the low calorific value of light oil at 42700 kJ/kg (10253 kcal/kg) and the low calorific value of natural gas at 35588 kJ/Nm3 (8500 kcal/Nm3). 2. Heavy oil, liquefied petroleum gas, and city gas are also suitable for this furnace type.
WNS Type Steam Boiler
WNS type steam boiler is a horizontal, internal-combustion, chamber-firing shell boiler fueled by oil or gas, which is the mainstream product of small and medium-sized industrial steam boilers at present.
I. Model Meaning
The three letters WNS stand for:
W (Horizontal) | The drum is placed horizontally with a compact structure |
N (Internal Combustion) | Combustion takes place in the furnace inside the drum |
S (Chamber Firing) | Fuel (oil/gas) burns in the furnace space rather than on a grate |
Complete Model Example | WNS6-1.25-Y(Q) |
6 | Rated evaporation capacity 6 t/h |
1.25 | Rated working pressure 1.25 MPa |
Y(Q) | Fuel is oil (Y) or gas (Q) |
II. Structure and Working Principle

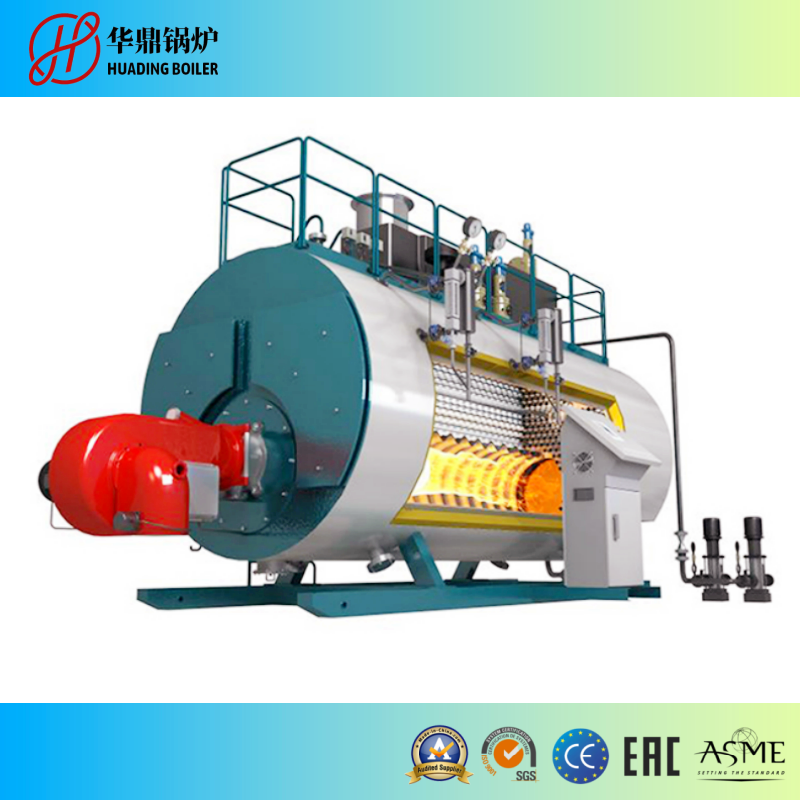

It adopts a three-pass, full wet-back structure:
First Pass (Radiant Heat Transfer) | Fuel is atomized by the burner and burns in the corrugated furnace, with the flame directly heating the furnace wall |
Second Pass (Convective Heat Transfer) | High-temperature flue gas turns through the combustion chamber and enters the threaded smoke tubes to enhance heat exchange |
Third Pass (Convective Heat Transfer) | The flue gas turns again through the front smoke box, enters the plain tube bundle for further cooling, and is then discharged |
III. Core Technical Features
Corrugated Furnace | Large radiant heating surface, free thermal expansion, and reduced thermal stress |
Threaded Smoke Tubes | Disturb flue gas, improve heat transfer coefficient, with thermal efficiency up to 93%-98% |
Wet-Back Combustion Chamber | The rear end is water-cooled, high temperature resistant and long service life |
Fully Automatic Control | Automatic ignition, load adjustment, water level/pressure control and safety protection. |
Compact Structure | Packaged delivery, short installation period and small floor space |
IV. Main Technical Parameters
Evaporation capacity | 1 ~ 20 t/h |
Working pressure | 0.7 ~ 2.5 MPa |
Steam temperature | 170 ~ 225 ℃ (saturated temperature under corresponding pressure) |
Applicable Fuels | Gas: Natural gas, liquefied petroleum gas, biogas, coke oven gas, etc. Liquid: Diesel oil, light oil, heavy oil, methanol, etc. |
V. Applicable Industries
Widely used in industries requiring steam such as chemical industry, food, textile, paper making, medicine, building materials and central heating.
