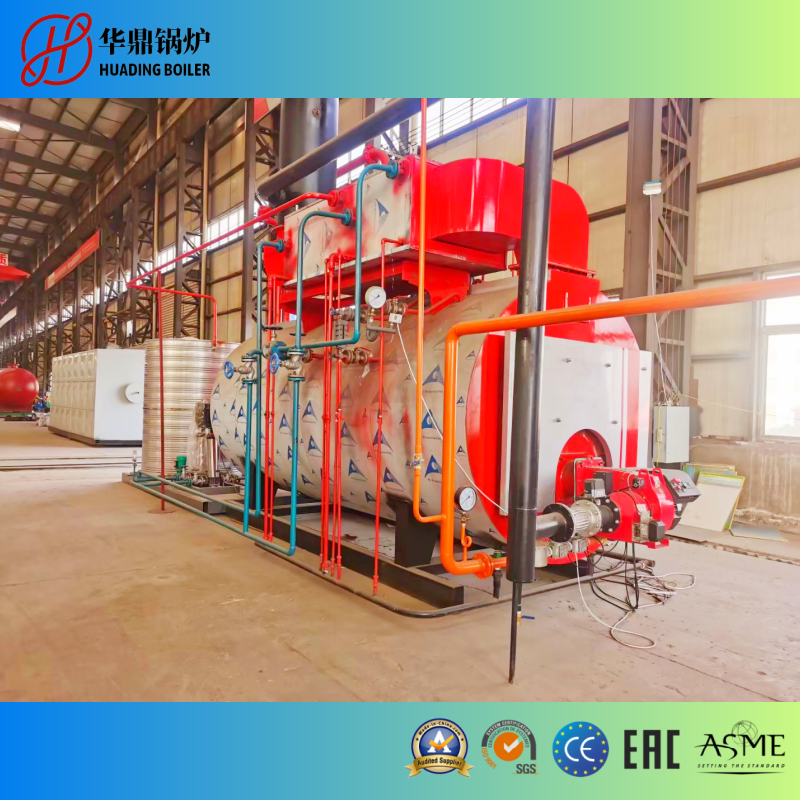

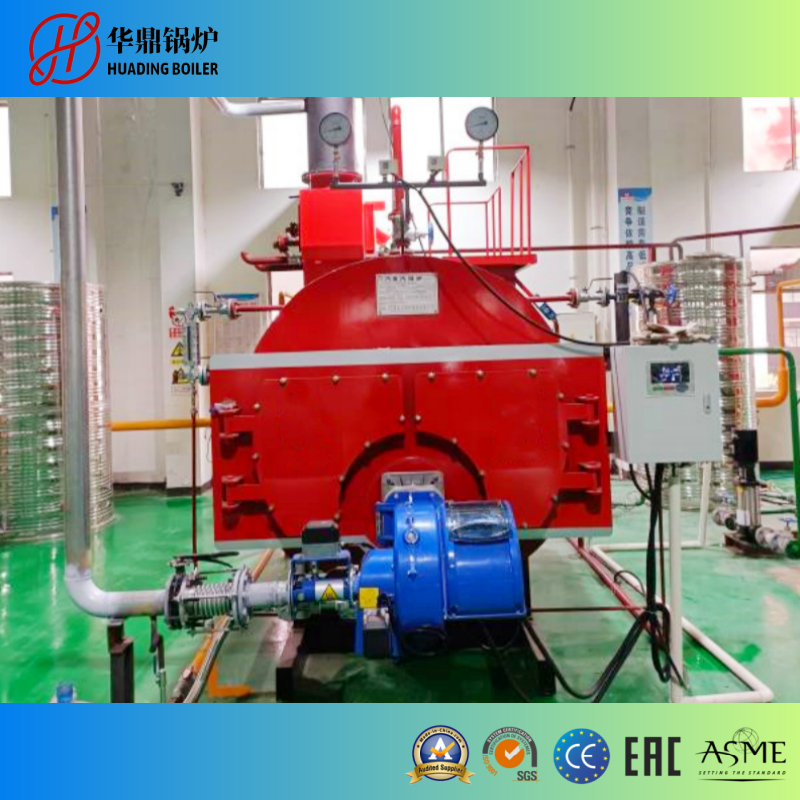

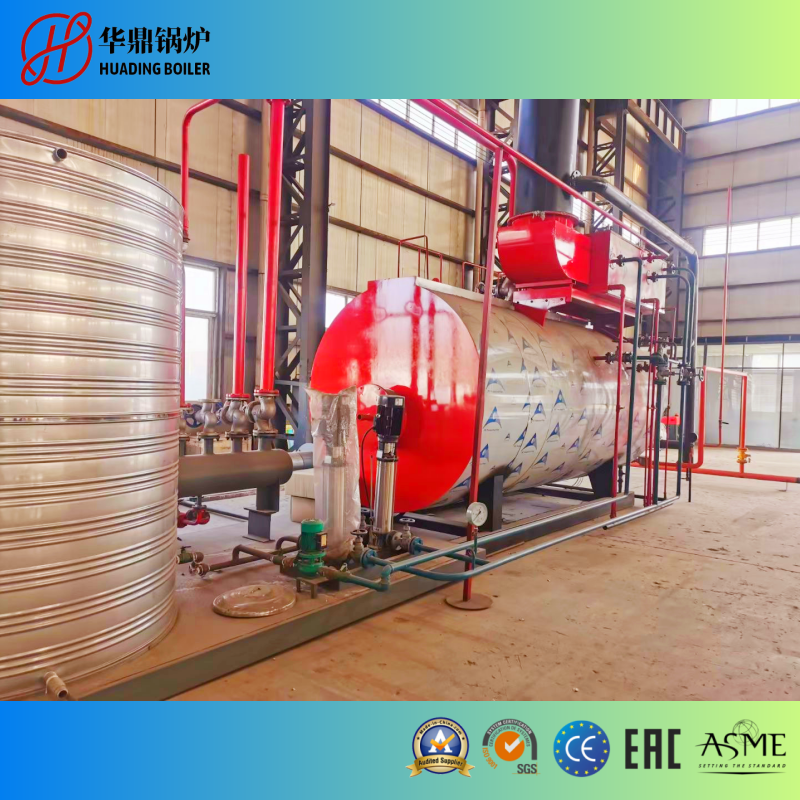

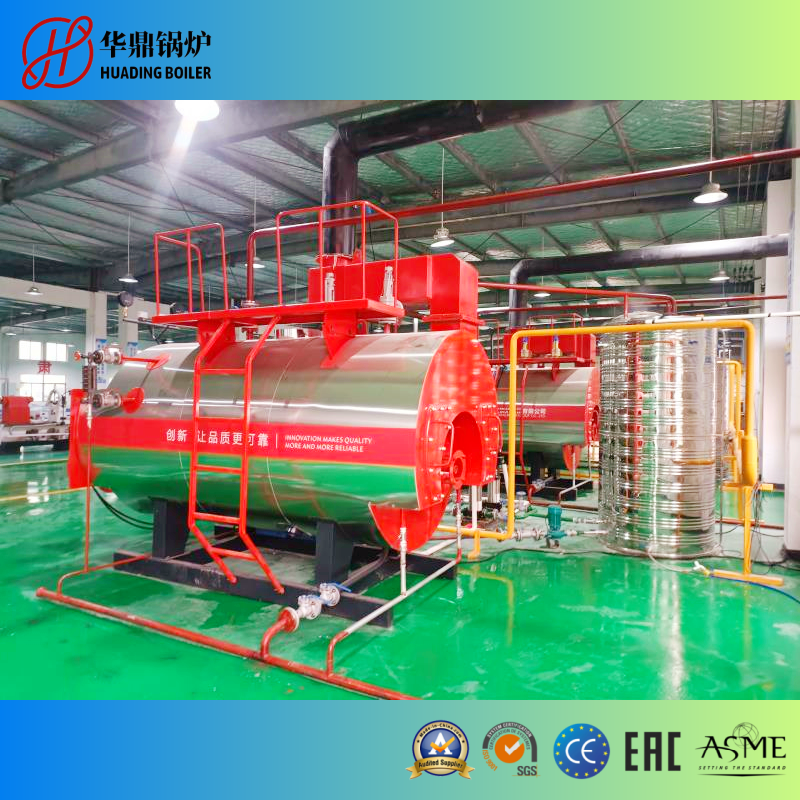

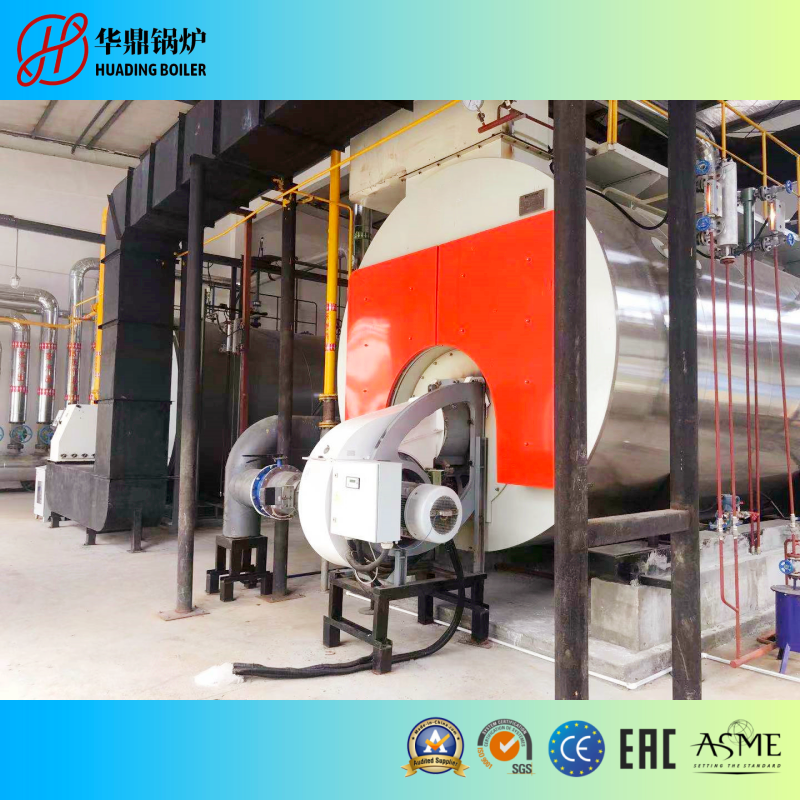

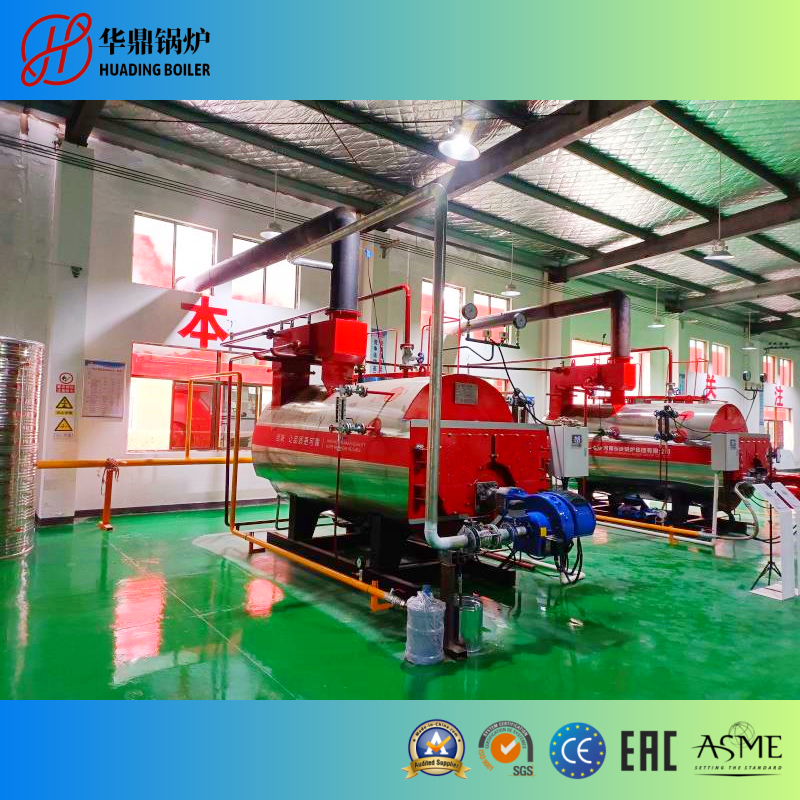

CWNS Horizontal Fuel/Gas Fired Atmospheric Hot Water Boiler

The CWNS series fuel/gas fired hot water boiler designed and produced by Huading Boiler adopts a quick-installation horizontal internal combustion three-pass fire-tube structure with a lower corrugated furnace liner. High-temperature flue gas flushes the second and third pass smoke pipes in turn through the return chamber of the corrugated furnace liner, and is discharged into the atmosphere through the chimney from the rear smoke chamber. The boiler is equipped with an imported automatic burner, and uses high-quality valves, instruments, water pumps and other auxiliary parts, which are durable, energy-saving and environment-friendly.

The CWNS series fuel/gas fired hot water boiler is a quick-installation horizontal three-pass fire-tube hot water boiler. It adopts a lower furnace liner wet-back layout. High-temperature flue gas flushes the second and third pass smoke pipes in turn, and then is discharged into the atmosphere through the chimney from the rear smoke chamber. The boiler is equipped with an imported burner, and adopts advanced technologies such as automatic proportional adjustment of combustion, automatic adjustment of water supply, program start and stop, and automatic operation. It has automatic protection functions such as operating water temperature control, over-temperature and over-pressure flameout.

The CWNS series fuel/gas fired hot water boiler has the characteristics of compact structure, safety and reliability, simple operation, quick installation, low pollution, low noise and high efficiency.

The CWNS series fuel/gas fired hot water boiler is widely applicable to enterprises, hotels, hospitals, office buildings, swimming pools, hot springs, residences, hotels, bathing centers, schools, shopping malls, civil buildings and other facilities for domestic use and heating.

   Technical Parameters

   Application Scope

Hotels, restaurants, schools, hospitals, government agencies, enterprises and institutions, workshops and factories, heating and domestic hot water, etc.

   Applicable Fuels

Natural gas, liquefied natural gas (LNG), liquefied petroleum gas (LPG), heavy oil, methanol, biogas, light diesel oil.
